HBLD type pipeline Electromagnetic Flow meter

  • SS304 stainless steel electromagnetic milk flow meter Product Description milk flow meter AFTLD series of intelligent milk flow meter is a high performance high reliability flowmeter for measuring the volumetric flow of conductive liquids
  • 咨询热线:13353783678
  • 产品详情

magnetic flow meter1.jpg

Product Description


flow meter (3).jpgflow meter (4).jpg

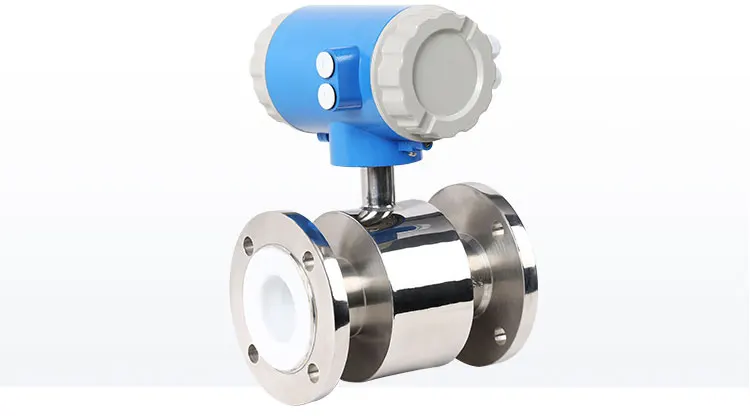

Electromagnetic flow meter


       AFTLD series of intelligent Electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.
 Technical parameters of electromagnetic flow meter:
Main power
AC220V 50HZ / DC24V
Power consumption
<15W (And set with sensor supporting power consumption )
Display and push buttons
The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display ,four thin-film touch nubs ,which is used to data set .
Forward total quantity ,reverse total quantity
Output signal
Analog output
Bi-direction with two ways ,Isolation 0-10mA/4-20mA
Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
Frequency output
Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50Ma when the transistor is turned on
Alarm output
Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.
Pulse output
For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma when the transistor is turned on .
±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant
Continuous variable from 0-100 s (90%)can be selected by group
RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure
An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class
Ex-proof Mark

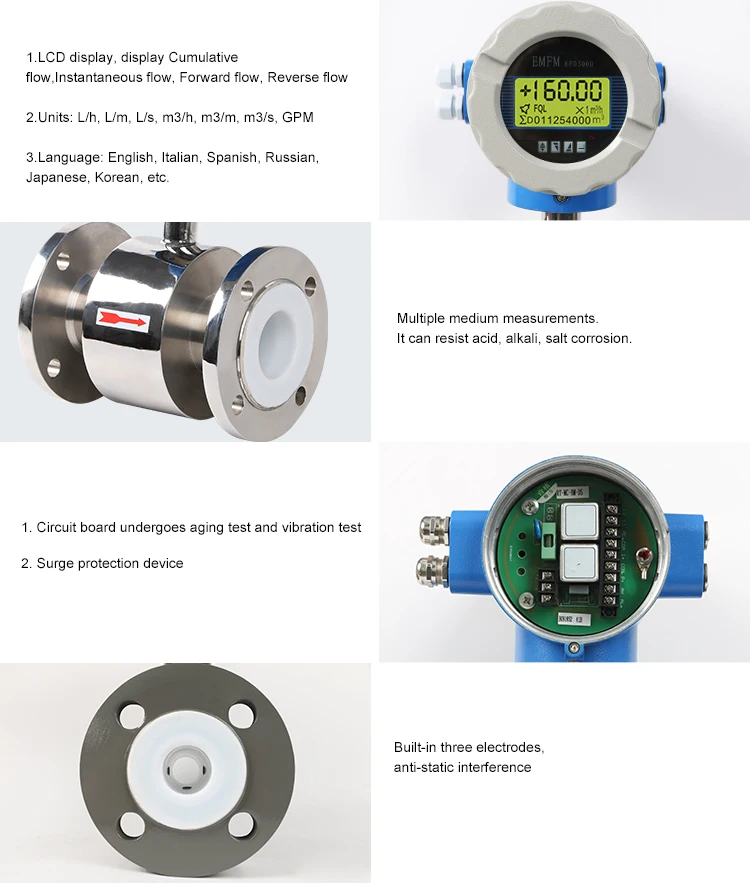

Detail Image


milk flow meter_10.jpg

milk flow meter.jpg

Main performances of the liner materials:


magnetic flow meter (5).jpg


Project Case






magnetic flow meter (4).jpg



          We are the manufacturer of flow meter, specializing in the production of electromagnetic flow meter, turbine flow meter, vortex flow meter, throttling devices and other flow meter. Our flow meters have been sold to the developed countries ,such as the United States, Australia and so on and the developing countries,such as India, Malaysia, Nigeria and so on.

magnetic flow meter (2).jpg


Process and Packing




magnetic flow meter(20).jpg

     Our company has strict quality control from product design, raw material procurement and processing, manufacturing and assembly, inspection and verification to every stage of product release, scientific management, strict process, advanced equipment and Professional team as a guarantee of quality products.

magnetic flow meter (3).jpg

       Each of our meter after factory calibration, according to different size do packaging, usually, below 100 mm flow meter will be used in fine carton packaging, above 100 mm flow meter will be used free of steam box packaging. We will ensure that each flow meter, safe to reach your hands.

Why choose us


  • Time is gold ”for you and for us, we have professional team work who can make nice quality in short time.
  • With us your money in safe your business in safe ”full refund in case of bad quality or delay delivery time , we also accept payment by paypal.

  • We are the leader of flow meter manufacturer in china.
  • Alibaba Assessed Gold Supplier.
  • Inspected by the Inspection Institution of Bureau Veritas Certification.
  • 100% QC inspection Before Shipping.
  • Exports to many countries.


magnetic flow meter-17.jpg


magnetic flow meter (25).jpg

       Our sales staff have been trained in professional knowledge and information, so we can provide the most professional services to our customers according to their needs;Our technical staff have conducted skills training and practiced in the workshop, with professional theoretical knowledge and rich practical experience.




       In order to ensure the quality of each product and to provide better service for customer. Our company has received a number of certifications, including CE certification, explosion-proof certification, MSES certification and some other internationally recognized certifications.


flow meter

magnetic flow meter (24).jpg

       We have participated in many exhibitions, such as Beijing Multinational Instruments Exhibition, Shanghai International Instrument Exhibition, Canton Fair and so on. At the exhibition, many customers were met and orders were placed through subsequent exchanges and interactions.
